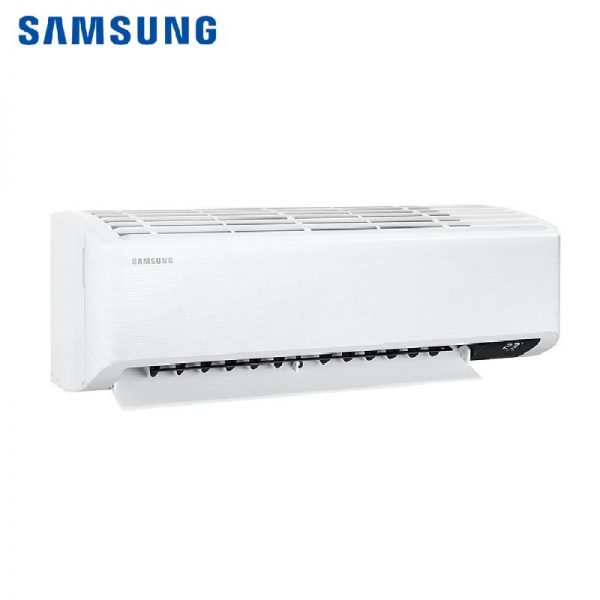

Samsung AR24TYHYDWKNME 2.5HP Air Conditioner S-Inverter Premium Wall-Mount R32

  • Brand: Samsung
  • SKU: SAM-AR24TYHYDWKNME
Out Of Stock
Roll over image to zoom in
Click to open expanded view

RM3,130.00RM3,699.00 (-15%)

Out of stock

  • Digital Inverter Boost: Reduce noise and energy usage
  • Auto Clean Function: Automatically removes dust and moisture in the heat exchanger which prevents the growth of bacteria
  • Good Sleep Mode: Creates the desirable climate for a good night’s sleep
Add to wishlist
Compare
SKU: SAM-AR24TYHYDWKNME Categories: , ,

Specifications

Capacity

  • Capacity (Cooling, Btu/hr)    21500 Btu/hr
  • Capacity (Cooling, Min – Max, Btu/hr)    5,000 ~ 25,000 Btu/hr
  • Capacity (Cooling, kW)    6.30 kW
  • Capacity (Cooling, Min – Max, kW)    1.47 ~ 7.33 kW

Energy Efficiency

  • EER (Cooling, W/W)    3.41 W/W
  • EER (Cooling, Btu/hW)    11.62 Btu/hW
  • CSPF    5.30
  • Energy Star Rating (Cooling)    5 Star

Noise Level

  • Noise Level (Indoor, High/Low, dBA)    45 / 30 dBA
  • Noise Level (Outdoor, High/Low, dBA)    52 dBA

Electrical Data

  • Power Source(Φ/V/Hz)    1 / 220-240 / 50
  • Power Consumption(Cooling, W)    1850 W
  • Operating Current(Cooling, A)    8.5 A

Physical specification

  • Gross Dimension (Indoor, WxHxD)    1115*290*375 mm
  • Gross Dimension (Outdoor, WxHxD)    1023*724*413 mm
  • Net Dimension (Indoor, WxHxD)    1055*299*215 mm
  • Net Dimension (Outdoor, WxHxD)    880*638*310 mm
  • Gross Weight (Indoor, kg)    13.2 kg
  • Gross Weight (Outdoor, kg)    38.6 kg
  • Net Weight (Indoor, kg)    11.6 kg
  • Net Weight (Outdoor, kg)    35.6 kg
  • Loading Quantity (20/40/40Hft without Pipe)    65 / 138 / 154

Technical Information

  • Piping Length (Max, m)    30 m
  • Piping Height (Max, m)    15 m
  • SVC Valve (Liquid (ODxL))    6.35
  • SVC Valve (Gas (ODxL))    15.88
  • Moisture Removal (l/hr)    2.5 l/hr
  • Air Circulation (Cooling, ㎥/min)    18.6 ㎥/min
  • Refrigerant (Type)    R32
  • Refrigerant (Charging, kg)    0.80 kg
  • Refrigerant (Charging, tCO2e)    0.54 tCO2e
  • Low Ambient (Cooling, ℃)    16~46 ℃
  • Outdoor Unit (Compressor Type)    BLDC
  • Outdoor Unit (Anti-Corrosion Fin)    Yes

Air Flow

  • Air Direction Control (Up/Down)    Auto
  • Air Direction Control (Left/Right)    Manual
  • Air Flow Control Step (Cool/Fan)    5/4

Air Purification

  • PM 1.0 Filter    No
  • Tri Care Filter    No
  • Easy Filter Plus (Anti-Bacteria)    Yes
  • Auto Clean (Self Cleaning)    Yes

Convenience

  • SmartThings    No
  • AI Auto Cooling    No
  • Motion Detect Sensor    No
  • Filter Cleaning Indicatior    Yes
  • Indoor Temp. Display    Yes
  • Display On/Off    Yes
  • Beep On/Off    Yes
  • 24-Hour Timer    Yes
  • Auto Changeover    No
  • Auto Restart    Yes

Operating Mode

  • Auto Mode    Yes
  • Fast Cool    Yes
  • Good Sleep    Yes
  • Eco Mode    Yes
  • Dehumidification    Yes
  • Fan Mode    Yes
  • Quiet    Yes

Smart

  • WiFi Embedded    No

Additional information

Weight 51.8 kg
