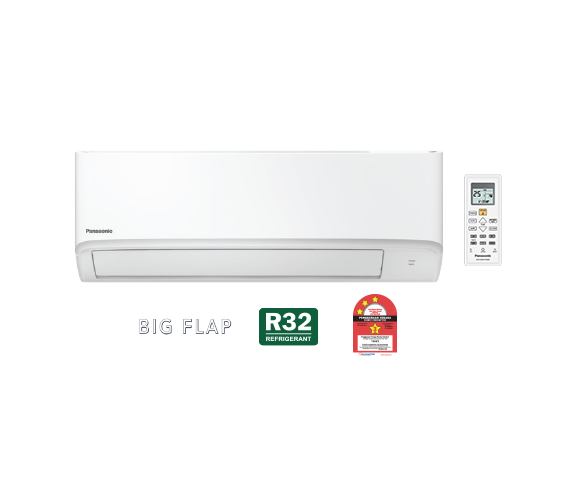

Panasonic CSPN9WKH 1.0HP Air Conditioner Standard Wall-Mount R32 Non-Inverter

RM1,088.00RM1,280.00 (-15%)

Out of stock

1.0HP Standard Non-Inverter R32 Series Air Conditioner
Wall-Mounted Standard Non-Inverter
Series: R32 Refrigerant
iAUTO
Big Flap

Compare
SKU: PAY-CSPN9WKH Categories: , ,

Panasonic 1.0HP Air Conditioner Standard Wall-Mount R32  Non-Inverter (CSPN9WKH)

1.0HP Standard Non-Inverter R32 Air Conditioner CS-PN9WKH-1 (CU-PN9WKH-1)

Model Indoor (50Hz) CS-PN9WKH-1
Outdoor (50Hz) CU-PN9WKH-1
Refrigerant Type R32
Cooling Capacity (min-max) kW 2.78
(min-max)Btu/h 9,500
EER (min-max) Btu/hW 11.59
(min-max) W/W 3.39
CSPF 3.48
Electrical Data Voltage (V) 230
Running Current (A) 3.7
Power Input (W) 820
Moisture Removal L/h 1.6
Pt/h 3.4
Air Circulation Indoor m3/min (ft3/min) 10.9 (385)
Outdoor m3/min (ft3/min) 28.8 (1,020)
Noise Level Indoor (H/L/Q-Lo) (dB-A) 38/26
Outdoor (H / L) (dB-A) 48
Dimensions Height (mm) 290 (511)
Height (inch) 11-7/16 (20-1/8)
Width (mm) 779 (650)
Width (inch) 30-11/16 (25-19/32)
Depth (mm) 209 (230)
Depth (inch) 8-1/4 (9-1/16)
Net Weight Indoor kg (lb) 8 (18)
Outdoor kg (lb) 21 (46)
Refrigerant Pipe Diameter Liquid Side (mm) ø 6.35
Liquid Side (inch) 1/4
Gas Side (mm) ø 9.52
Gas Side (inch) 3/8
Pipe Extension Chargeless Pipe Length (m) 7.5
Maximum Pipe Length (m) 20
Maximum Elevation Length (m) 15
Additional Refrigerant Gas* (g/m) 10
Power Supply Indoor
Cleaner Air nanoeTMX No
nanoe-G No
Anti-Dust Coating No
Dust Sensor No
Odour-Removing Function Yes
Removable, Washable Panel Yes
Comfort Radiant Cooling No
iAUTO-X No
iAUTO No
ECONAVI No
ECO Mode with A.I. No
Temperature Wave No
SLEEP Yes
Inverter Control No
Powerful Mode Yes
Quiet Mode Yes
Soft Dry Operation Mode Yes
Personal Airflow Creation No
Airflow Direction Control (Up Down) Yes
Manual Horizontal Airflow Direction Control Yes
Convenience 24-Hour Dual ON OFF Real Setting Timer No
24-Hour ON OFF Real Setting Timer Yes
LCD Wireless Remote Control Yes
Wireless LAN Remote Control For Internet Connection No
Wired Remote Control Yes (Optional)
Reliability Random Auto Restart (32 Restart Patterns) Yes
Blue Fin Condenser Yes
Long Piping (Numbers indicate the maximum pipe length) 30m
Top-Panel Maintenance Access Yes
Self-Diagnostic Function No

Additional information

Weight 31 kg
